A pull-out storage panel creates a different wall-load problem than a fixed pegboard. Once a loaded panel moves forward above the bench, its weight has leverage. NDS lag screw withdrawal capacity helps determine whether the fasteners holding that system to wood studs can resist the force trying to pull them out of the wall.
That is not a detail to hand-wave with a box of generic screws and a guess. It is the connection between the hardware and the wall that governs the practical load limit. The aluminum frame can be stiff. The slides can have a published rating. But if the fasteners are poorly selected, miss the stud center, or lack sufficient thread penetration, the wall connection is still the weak point.
Why withdrawal capacity matters above a workbench
Fixed wall storage keeps most of its load close to the wall. A pull-out blade changes that geometry. As the panel travels forward on over-travel slides, the stored tools, bins, or materials move out over the work surface. That reach is the point: it brings the upper wall down to eye level and makes a deeper bench practical. It also creates an overturning effect at the mounting points.
The upper fasteners may see withdrawal demand as the assembly tries to rotate away from the wall. Lower fasteners and the rest of the mounting system carry their own forces as well. This is why a slide rating by itself is not a wall-mount rating. A 100 lb or 150 lb slide does not tell you what a particular stud, lag screw, mounting pattern, and loaded panel can safely support.
For a system such as TroveBlade, the wall connection is not an afterthought added after the frame design. It is part of the load path from the stored item, through the panel and slides, into the aluminum structure, through the lag screws, and finally into the wood studs.
What NDS lag screw withdrawal capacity actually describes

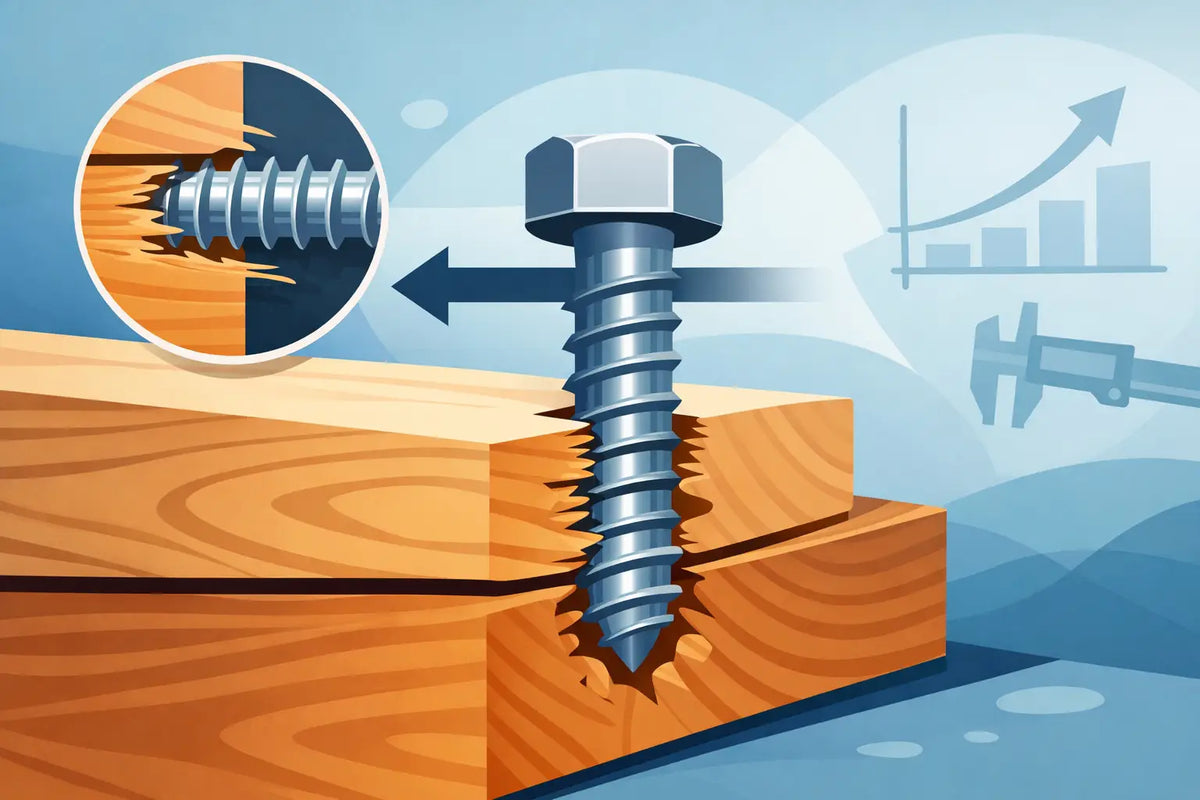

NDS refers to the National Design Specification for Wood Construction. It provides engineering design values and methods for wood connections, including lag screw withdrawal. In plain workshop terms, withdrawal capacity is the resistance of a lag screw to being pulled straight out of the wood along its shank.
That direction matters. Withdrawal is not the same as lateral capacity, often called shear capacity. A fastener loaded sideways behaves differently than one being pulled outward. A properly engineered wall-mounted system checks the relevant forces rather than treating every load as though it were the same.
NDS withdrawal calculations start with the screw and the wood, then apply the geometry of the connection. The result is not a universal pounds-per-screw number. Anyone offering one without asking what wood, fastener, and installation are involved is skipping the part that makes the answer useful.
Wood species and specific gravity
Denser wood generally provides more holding strength than lighter wood. NDS uses wood-specific properties, including specific gravity, because a lag screw embedded in one species does not necessarily have the same withdrawal resistance as the same screw embedded in another.
In a garage or shop wall, the challenge is that the visible surface tells you little about the actual stud. It may be common framing lumber, engineered studs, or a wall assembly with unknown modifications. A conservative design method accounts for the actual mounting condition instead of assuming every wall is ideal.
Lag screw diameter and threaded penetration
Larger fasteners can provide more withdrawal resistance, but diameter alone does not solve the problem. The threaded portion needs enough penetration into sound structural wood. Thread buried in drywall, a furring strip, or an empty cavity contributes nothing to withdrawal capacity.
Too little penetration is a common installation mistake because a screw may feel tight before it has meaningful engagement in the stud. Excessive length can create other issues, including striking wiring, plumbing, or services on the far side of a wall. The right fastener is selected for the complete wall stack-up, not simply for the heaviest-looking screw at the hardware store.
Stud location, edge distance, and wood condition
A lag screw needs to land in the stud, preferably near its centerline. A fastener that catches only the edge of a stud has less reliable wood around it and increases the chance of splitting. Knots, checks, existing holes, damaged framing, and fasteners installed too close together can also reduce confidence in the connection.
That is why stud finding is an installation task, not a quick preliminary step. Confirm the stud layout, mark it clearly, and verify where fasteners will enter before lifting a loaded frame into place. If the mounting conditions differ from the planned layout, adjust the plan rather than forcing the hardware to fit a bad location.
Capacity is a system calculation, not a screw-box claim
A wall-mounted pull-out panel has several load cases. There is the steady weight of the panel and its contents. There is the increased moment when the panel is extended. There may be uneven loading if heavy tools live on one side, and there are real-world dynamic loads when a user pulls the panel open, closes it firmly, or adds items over time.
The fastener calculation must work with the spacing of the wall mounts, the distance the load sits from the wall, the number of fasteners sharing each demand, the frame geometry, and the slide configuration. The usable panel also matters. A lightweight pegboard holding small hand tools produces a different load pattern than a French cleat board carrying dense cordless tools, metalworking fixtures, or rows of parts bins.
This is also why “I have four lag screws, so I will divide the weight by four” is not a valid design approach. Forces are not always shared evenly, particularly where a cantilevered assembly is trying to rotate. A well-designed mounting arrangement puts the connection details, not just the product label, under scrutiny.
How VitaReach applies the NDS method
TroveBlade's load calculations use NDS (National Design Specification for Wood Construction) engineering formulas, applied with a 3× safety factor to all fastener capacities. NDS is the correct standard here because TroveBlade's lag screw fasteners anchor into wood wall studs - the connection point that governs real-world load capacity, not the aluminum frame itself.
The 3× safety factor is deliberate. Shop storage is rarely static and perfectly predictable. Tool collections grow. Panels are loaded unevenly. A user may pull a blade open with more force than expected. Designing fastener capacity with margin recognizes how active garages, workshops, sewing rooms, and parts areas are actually used.
The methodology, including which AI assistant performed the analysis, is disclosed transparently on the Load Rating page. That disclosure matters because a load rating should not be presented as a mysterious marketing number. You should be able to understand what was evaluated, what supports the rating, and what installation assumptions still need to be met on your wall.
Installation choices that protect the calculated rating
The published calculation only applies when the installation matches its assumptions. Start with sound wood studs, not drywall anchors or sheet metal studs. Use the specified fasteners and install them in the intended locations. Confirm the wall is structurally suitable and that the frame is level, square, and secured before loading the panel.
Do not substitute a shorter screw because it is easier to drive, and do not treat a decorative plywood skin as structural backing unless it has been designed to be one. If a wall has steel studs, masonry, uncertain framing, unusually thick finishes, or evidence of water damage, pause and develop a mounting approach appropriate to that construction.
Load the panel with some thought as well. Keep the heaviest tools and bins distributed rather than concentrating them at one far edge. Respect the recommended per-blade capacity, and remember that a panel is a working surface for organized storage, not a place to hang your body weight or use as a ladder.
A pull-out panel earns its place when it makes the high wall usable without turning the bench into a narrow aisle. Get the stud connection right, and that motion can stay useful for the long haul: tools visible, supplies reachable, and the space above the bench doing real work.
