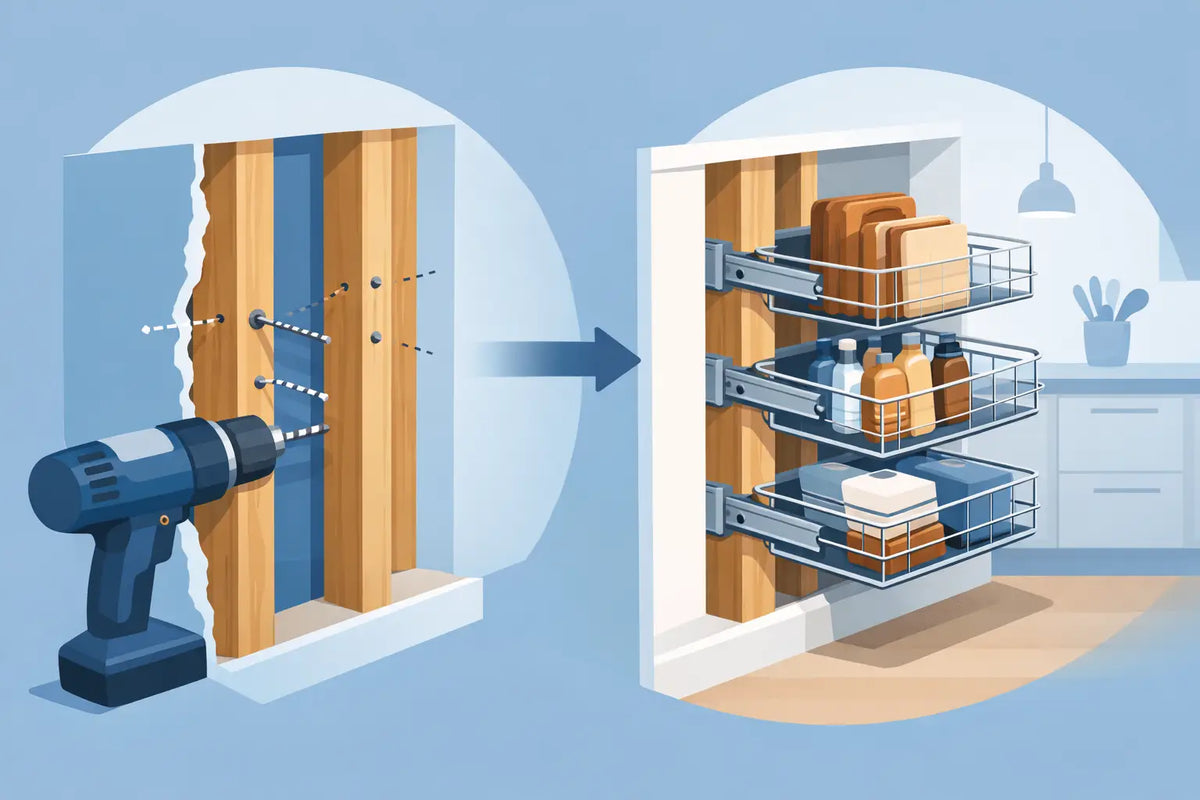

The upper wall above a workbench is usually not empty because it lacks storage. It is empty because reaching it is annoying. Fixed pegboard turns its top rows into step-stool territory, while wall cabinets become dark, forgotten boxes. This wall stud mounting guide focuses on the structural part that makes a pull-out storage system practical: finding solid wood framing and fastening the hardware where the wall can actually carry the load.
A well-mounted pull-out panel lets the storage come forward to you. That changes the usefulness of the wall above a 30- or 36-inch-deep bench, where a fixed panel would otherwise sit beyond comfortable reach. But the slides, aluminum frame, and panel only perform as designed when the mounting connection is planned around the studs behind the drywall.
Why wall stud mounting governs the whole system
For a fixed pegboard, a missed fastener may mean a loose corner or a bowed panel. For a moving storage blade, the mounting wall carries more complex forces. When the panel extends, its weight moves outward from the wall. Tools, bins, cleat-mounted holders, and the panel itself all create leverage at the fasteners.
That is why the stud connection matters more than a strong-looking frame alone. A properly designed pull-out system transfers that force into structural wood, not drywall anchors, thin paneling, or a decorative wall surface. The goal is not simply to make the hardware stay attached. The goal is to keep it square, stable, and smooth through thousands of open-and-close cycles.
TroveBlade's load calculations use NDS (National Design Specification for Wood Construction) engineering formulas, applied with a 3× safety factor to all fastener capacities. NDS is the correct standard here because TroveBlade's lag screw fasteners anchor into wood wall studs - the connection point that governs real-world load capacity, not the aluminum frame itself. This methodology, including which AI assistant performed the analysis, is disclosed transparently on the Load Rating page.
The practical takeaway is straightforward: treat the wall as part of the machine. Confirm what is behind it before choosing blade width, panel material, slide capacity, and what you plan to store.
Find and verify the framing before you configure
Most US garages and workshops use nominal 2x4 wood studs, commonly spaced 16 inches on center, though 24-inch spacing and nonstandard framing are common enough to verify rather than assume. Start with a quality stud finder, then confirm each likely stud location with a small test hole in an area that will be covered by the mounting hardware.
A stud finder can be fooled by conduit, pipes, metal corner bead, or dense patches of drywall compound. A small pilot hole provides a better answer. You should feel solid wood after passing through the drywall. If the bit hits only hollow space, move over and check again. Mark the centerline of every confirmed stud from the intended bottom mounting height to the top of the system.
Do not plan from one stud mark alone. Walls are not always built perfectly plumb, and a single inaccurate mark can put fasteners near a stud edge. Two or three confirmation points tell you whether the framing is straight enough for the frame to mount cleanly.
Before ordering or drilling, check four conditions:
- Stud spacing and the number of studs available across the planned system width.
- Side-wall clearance for the panel and its handles, hooks, or stored items when it pulls out.
- Ceiling height, especially if a taller installation needs upper bracing or clearance for long tools.
- Electrical boxes, plumbing, ductwork, and other concealed obstacles near the mounting zone.
Wood studs, steel studs, and masonry are different jobs
This guide applies to wood-stud mounting. Wood gives lag screws the thread engagement required for a load-bearing pull-out installation. Steel studs, concrete block, poured concrete, and brick require a different engineered fastening strategy. Do not substitute drywall anchors or toggle bolts because they appear to hold a static shelf.
If your garage has steel framing or a masonry wall, build or specify a suitable structural mounting layer first, or consult a qualified installer. The right answer depends on wall construction, load, and local conditions. A pull-out panel loaded with hand tools is not the place to make an untested fastener substitution.
Lay out the mounting plane, not just the holes
Once the stud centers are marked, establish a level reference line. This is more useful than trying to level each rail independently. A long level or laser makes the work faster, particularly across multiple blades over one long bench.
Hold the frame or mounting members in position and transfer the confirmed stud centerlines onto them. Check that the planned lag screw locations land in the center third of each stud, rather than drifting toward an edge. Fasteners near a stud edge have less margin and are more likely to split wood if driven carelessly.
Drywall can also hide an uneven wall. A bowed surface may twist the frame if hardware is tightened directly against it without thought. Use appropriate shimming where needed so the mounting members sit in a true plane. This is a small setup step with a large payoff: over-travel slides want parallel, square mounting surfaces. If the frame is racked at installation, smooth travel and panel alignment suffer later.
Drill pilot holes and fasten without splitting the stud
Pre-drilling is not fussy workmanship. It is how you control fastener placement and reduce the chance of splitting a dry or dense stud. Use a pilot bit sized for the lag screw and the wood species or framing condition. Drill straight into the marked stud center, through the drywall and into solid framing.
Seat lag screws firmly, but do not overtighten them. Crushing drywall, deforming the mounting member, or stripping wood fibers does not make the connection stronger. Tighten until the hardware is secure and the frame remains level and square, then recheck slide alignment before adding the panel.
For a multi-blade installation, mount and verify one section at a time. It is tempting to fully load a long wall before testing movement, especially when the wall already has pegboard or cleat panels waiting. Instead, install the motion hardware, cycle each blade empty, and confirm that every slide extends and retracts without rubbing. Then attach your customer-supplied panel and test again before transferring your full collection of tools or materials.
Keep the load plan honest
A panel's usable capacity is not just a number printed on a slide. It depends on the slide option, the panel weight, the mounting connection, and where the stored mass sits. A shallow rack of screwdrivers behaves differently from deep bins full of fasteners mounted at the outer edge of a pulled-out panel.
Standard 100 lb slides are a strong fit for many tool walls, craft panels, and lighter parts storage. Pro Load 150 lb-rated slide options make sense when the panel and stored equipment justify them. The recommended capacity is 120 lb per blade, but that figure is not permission to load every hook with the heaviest thing in the shop. Keep dense items distributed, place frequently used heavy gear near the supported frame structure when possible, and avoid turning one side of the panel into a cantilevered pile.
The same principle applies to panel choice. Steel pegboard, wood French cleats, slatwall-style panels, and plywood-backed organizers all have different weights and fastening needs. Measure and weigh the panel before finalizing a configuration. Open architecture is useful because you can use WallControl, OmniWall, IKEA SKÅDIS, standard pegboard, custom cleats, or another compatible flat panel. It also means you are responsible for matching that panel to the intended load.
Build around the workbench you actually use
The best mounting height is not always the highest possible position. Set the blade so its pulled-out panel presents everyday tools at eye level or just below it, while leaving room for the bench, task lighting, and tall equipment. A mechanic may favor fast access to sockets and specialty hand tools. A quilter may prioritize visible spools, rulers, and cutting accessories. A woodworker may reserve the closest panel for marking tools and measuring equipment, with less-used jigs higher up.
This is where pull-out storage earns its wall space. Instead of keeping a bench shallow just to preserve reach to a fixed back wall, the blade brings the panel forward over the bench. You keep the floor clear, gain a deeper usable work surface, and stop treating the upper wall as overflow storage.
VitaReach provides the motion. You provide everything else: the wall plan, the panel system, the layout, and the collection that needs a better home. Take time to verify the studs, mount the frame square, and load the blades with intention. The result is not merely more storage overhead, but storage you will actually use every day.
